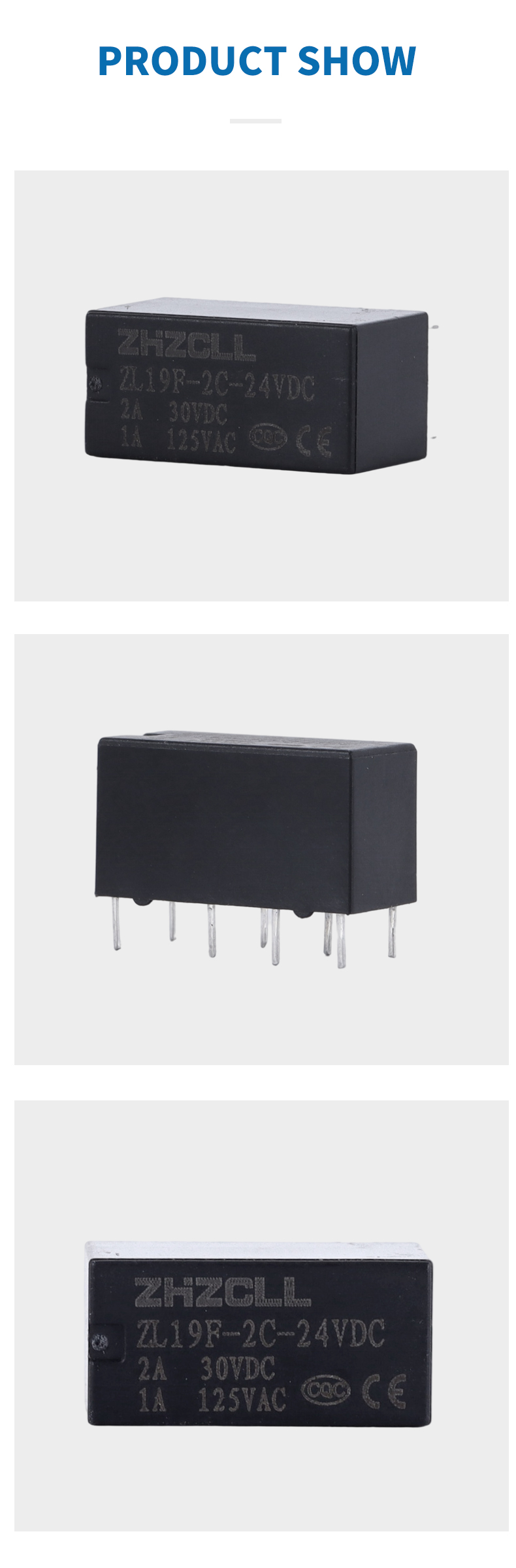

 35-ZL19F-2D-12VDC Miniature relay

ZL19F-2D-12VDC Miniature relay

ZL19F-2D-12VDC Miniature relay

ZL19F-2D-12VDC Miniature relay

ZL19F-2D-12VDC Miniature relay

ZL19F-2D-12VDC Miniature relay

ZL19F-2D-12VDC Miniature relay

ZL19F-2D-12VDC Miniature relay

ZL19F-2D-12VDC Miniature relay

ZL19F-2D-12VDC Miniature relay

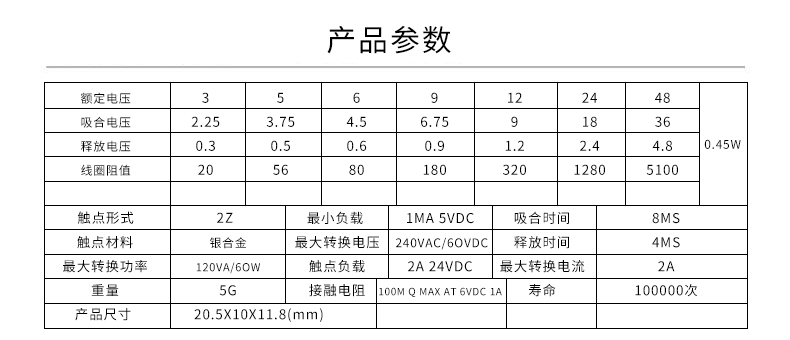

COIL DATA (at 20℃)

Nominal Voltage(VDC)

5

6

9

12

24

48

Coil Resistance(Ω±10%)

125

180

405

720

2880

Rated Current(mA)

40

33.3

22.2

16.7

83

0.2W

Max Operate Voltage (VDC)

3.75

4.5

6.75

9

18

Min Release Voltage(VDC)

0.5

0.6

0.9

1.2

2.4

Max ApplicableVoltage

130% of nominal voltage at 70℃

170% of nominal voltage at 23℃

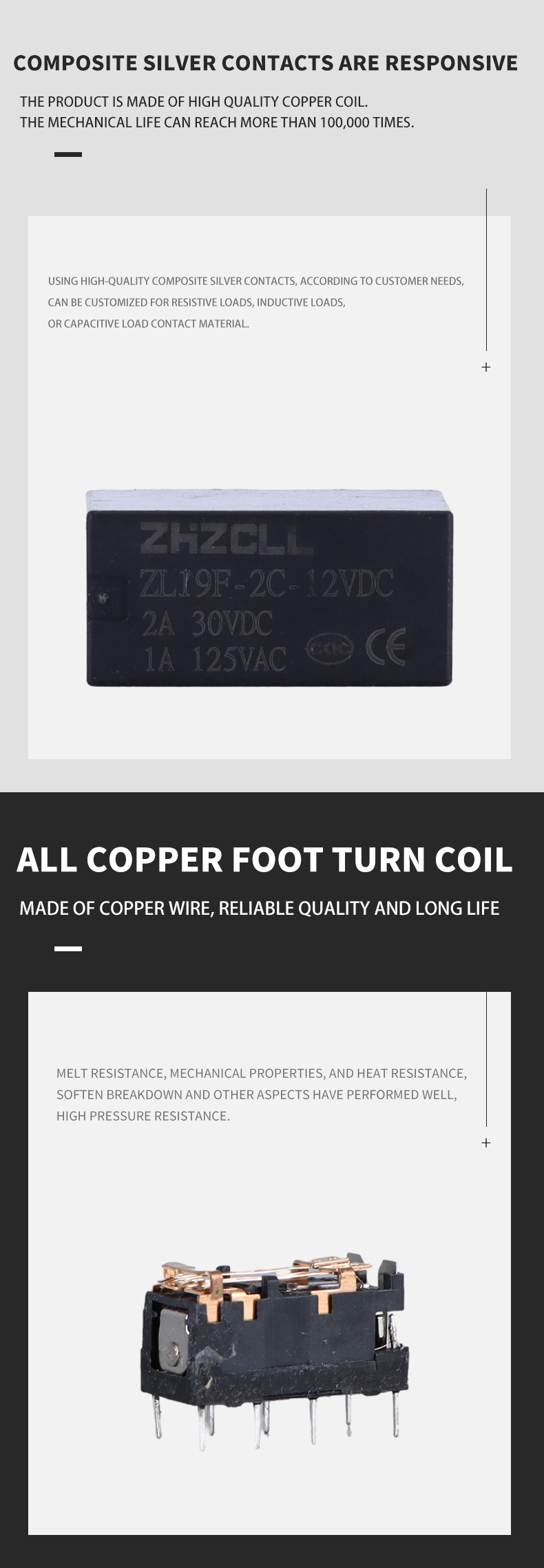

CONTACT DATA

Contact Form

2Z

Contact Material

Silver Alloy

Load

Resistive load(COSΦ=1)

Contact  Ratings

1A 120VAC

2A 24VDC

Minimum load

1mA 5VDC

Max Switching Voltage

240VAC/60VDC

Max Switching Current

2A

Max Switching Power

120VA/60W

Contact Resistance

100mΩMax at 6VDC 1A

Life Expectancy

Electrical : 100,000  Operations(at30Operations/minute)

Mechanical: 10,000,000 Operations(at300Operations/minute)

CHARACTERISTICS DATA

Insulation Resistance

100MΩMin at 500VDC

Dielectric Strength Between Open Contacts

500VAC(for one minute)

Between Contacts and coil

1500VAC(for one minute)

Operate Time

8ms

Release Time

4ms

Temperature Range

-30℃to+85℃

Shock Resistance

Operating Extremes: 10G

Damage Limits: 50G

Vibration Resistance

10-55Hz, 1.5mm

Max. switching frequency

Mechanical: 18,000 operations/hr

Electrical: 1,800 operations/hr

Humidity

40-85%

Weight

Approx 10g

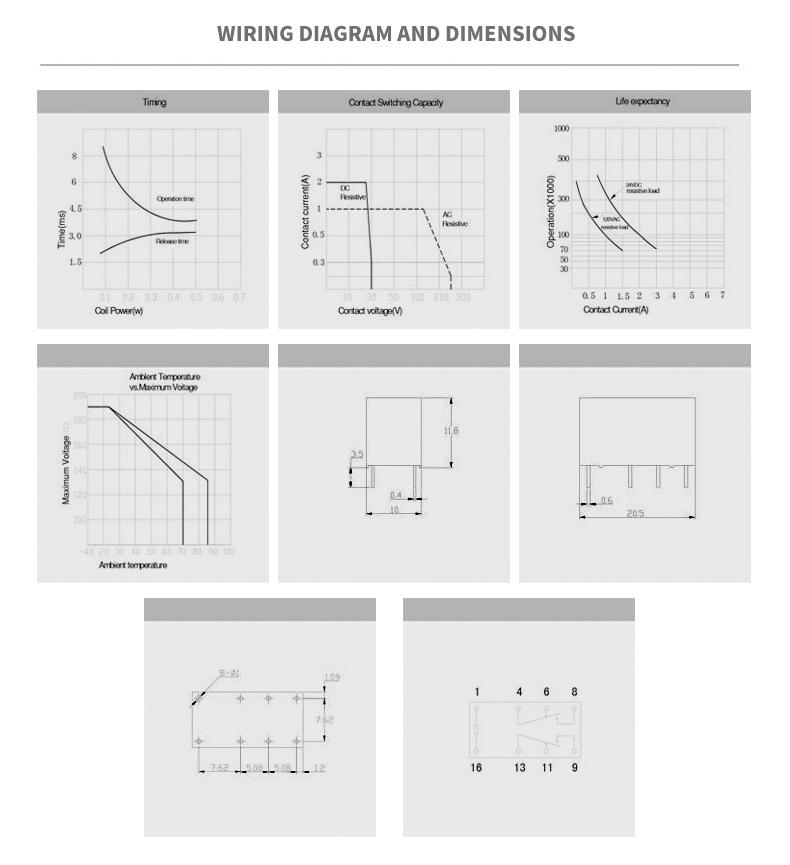

DIMENSIONS ENGINEERING DATA

OVERALLAND MOUNTING DIMENSIONS
