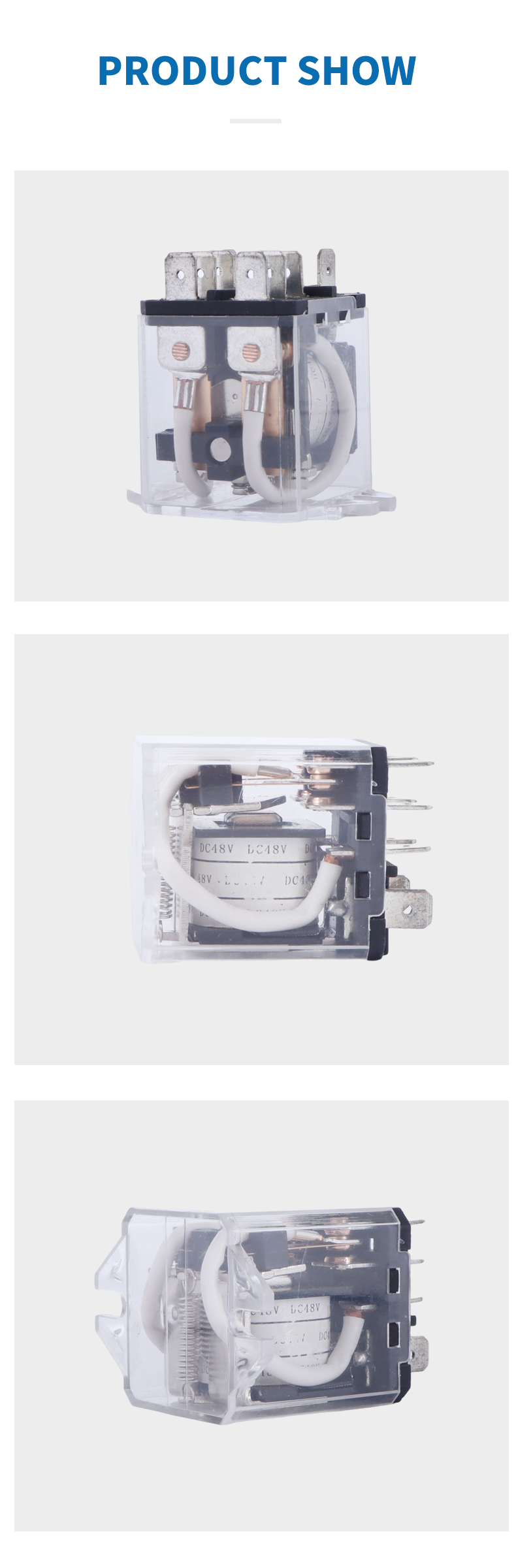

JQX-30F High power relay
Product Description
Power Relay: JQX-30F
|
Coil voltage:DC5-60V,AC12-220V
|
Contact Specification
|
Contact form
|
2Z,2H,2D
|
Contact resistance
|
≤100mΩ(1A 6VDC)
|

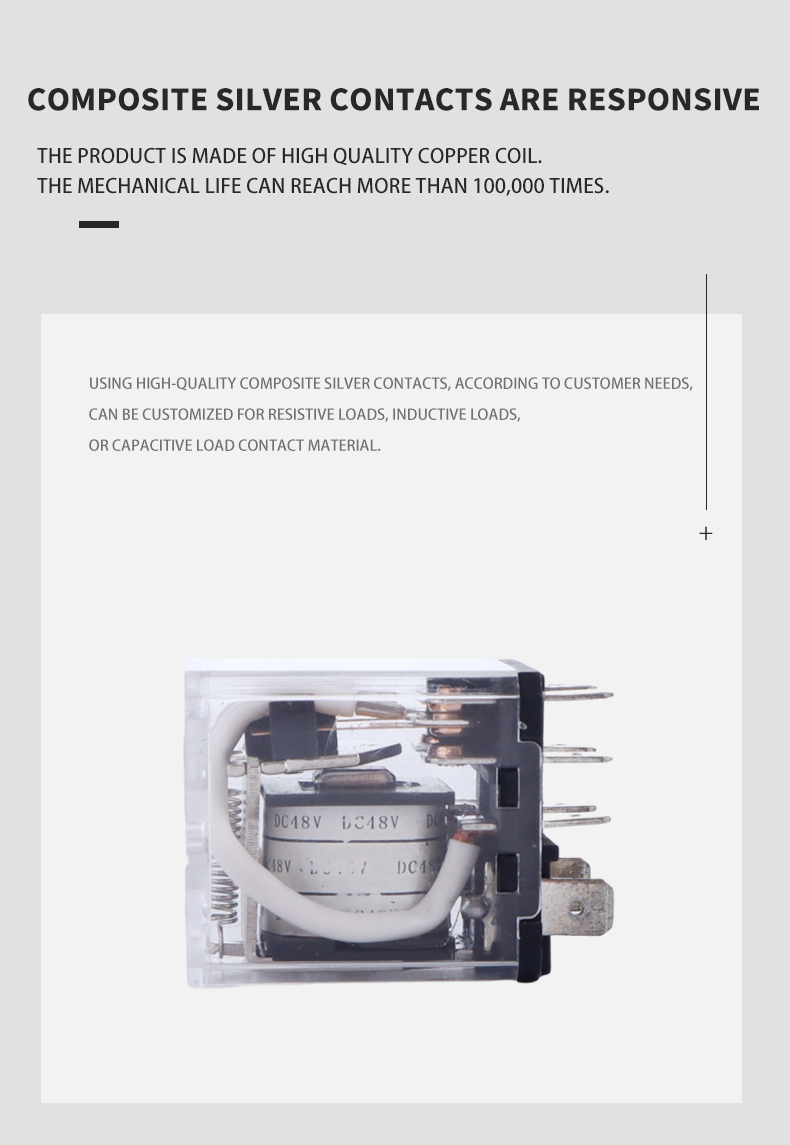

Contact material
|
AgCdO
|
Contact capacity
|
30A 250VAC
|

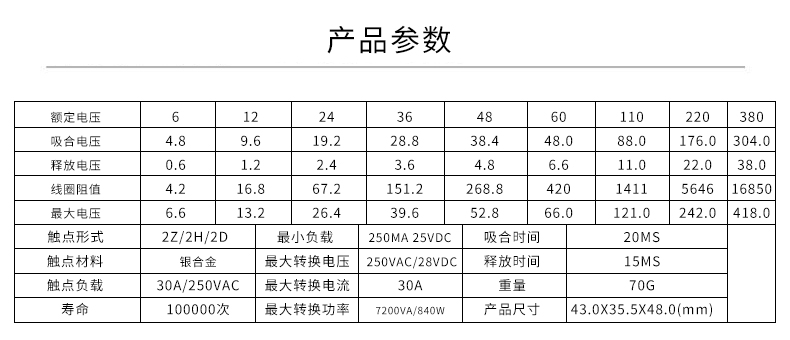

Technical Specification
|
Insulation resistance
|
≥1000MΩ.500VDC
|
Dielectric strength
|
BCC ≥ 2500VAC 1min
|
BOC ≥1200VAC 1min
|
Operate / Release Time
|
20ms/10ms
|
Terminal type
|
PCB and terminal mounting
|
Coil Specification
|
Rated coil power: DC1.5W AC2.5VA
|
Coil Data
|
Nominal
voltage
|
Operate
voltage
|
Release
voltage
|
Coil
resistance
|
Nominal
voltage
|
Operate
voltage
|
Release
voltage
|
Coil
resistance
|
VDC
|
VDC
|
VDC
|
Ω±10%
|
VAC
|
VAC
|
VAC
|
Ω±10%
|
6
|
4.8
|
0.6
|
24
|
12
|
9.6
|
3.6
|
20
|
12
|
9.6
|
1.2
|
96
|
24
|
19.2
|
7.2
|
80
|
24
|
19.2
|
2.4
|
384
|
48
|
38.4
|
14.4
|
320
|
48
|
38.4
|
4.8
|
1540
|
110
|
88
|
36
|
1700
|
60/110
|
48.0/88
|
6.00/11.0
|
2400/8060
|
220/240
|
176/176
|
72/72
|
6770/8060
|

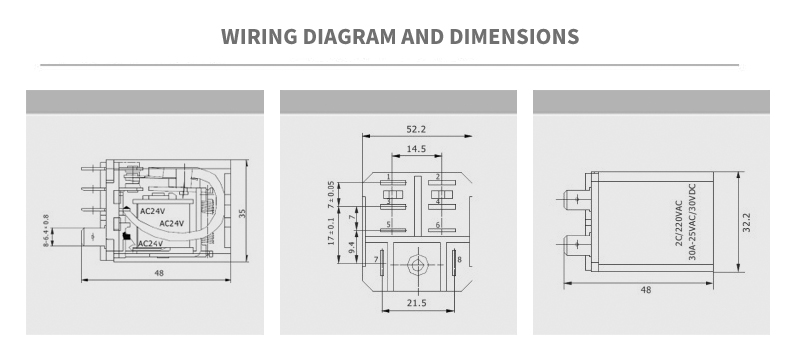

Dimension.Bottom View
|
