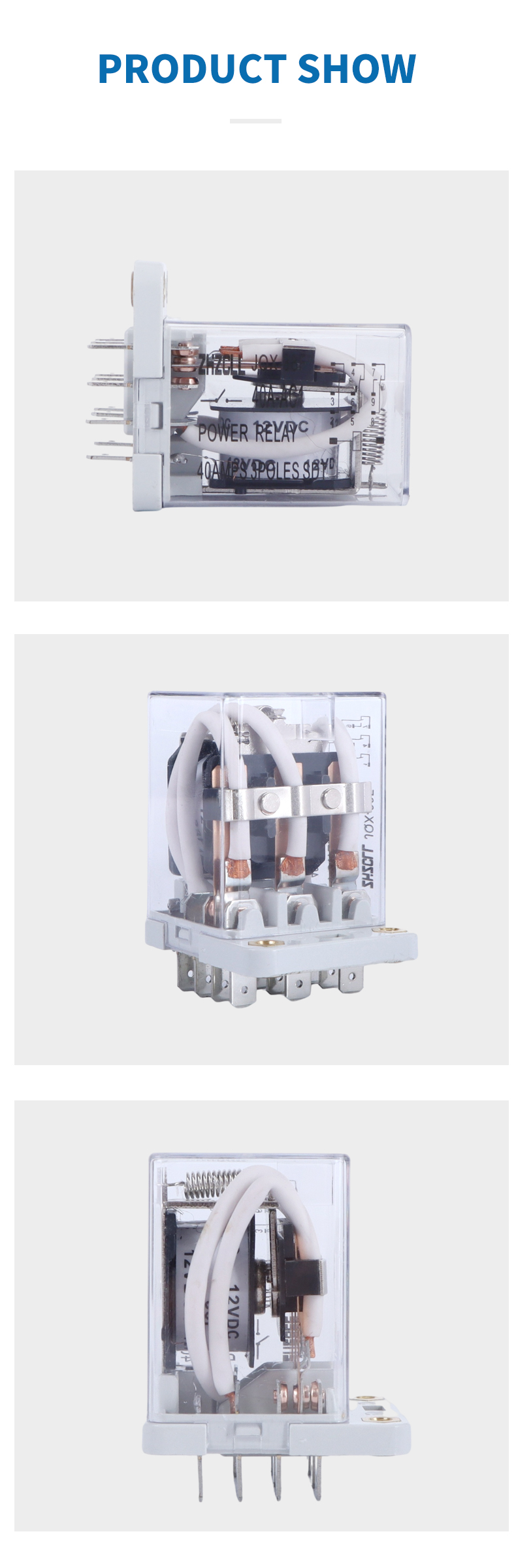

Model
|
JQX-38F
|

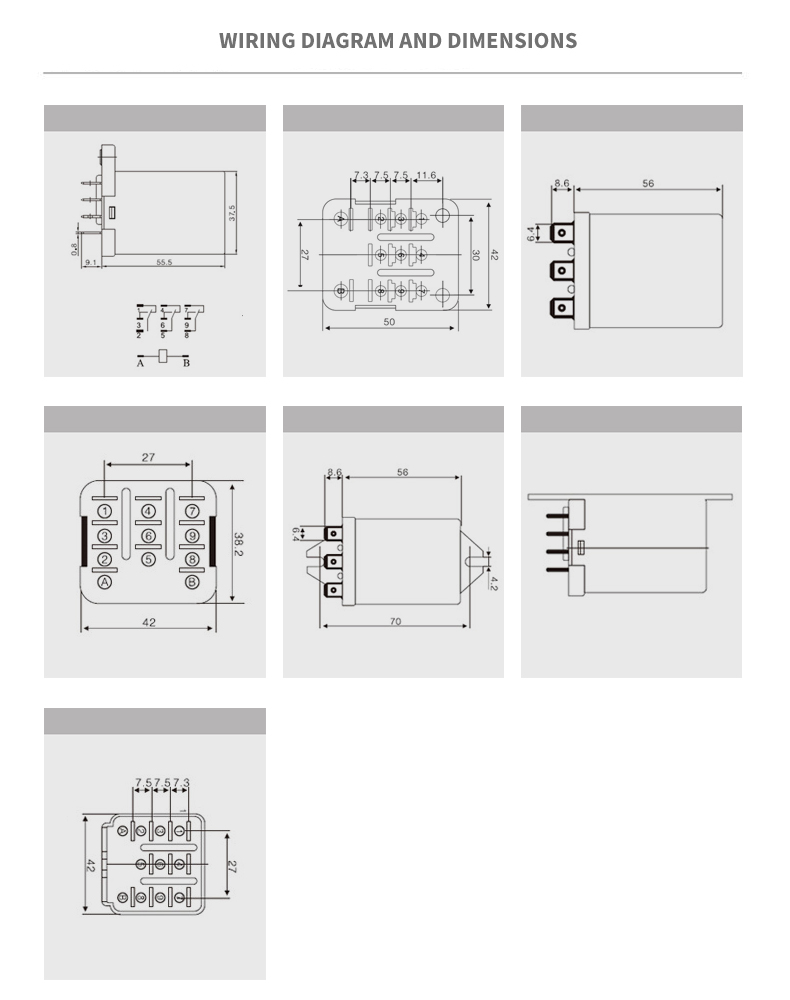

Dimention(mm)
|
55.7*41.5*49.1
|
Contact Form
|
3Z 3H 3D
|
Contact Material
|

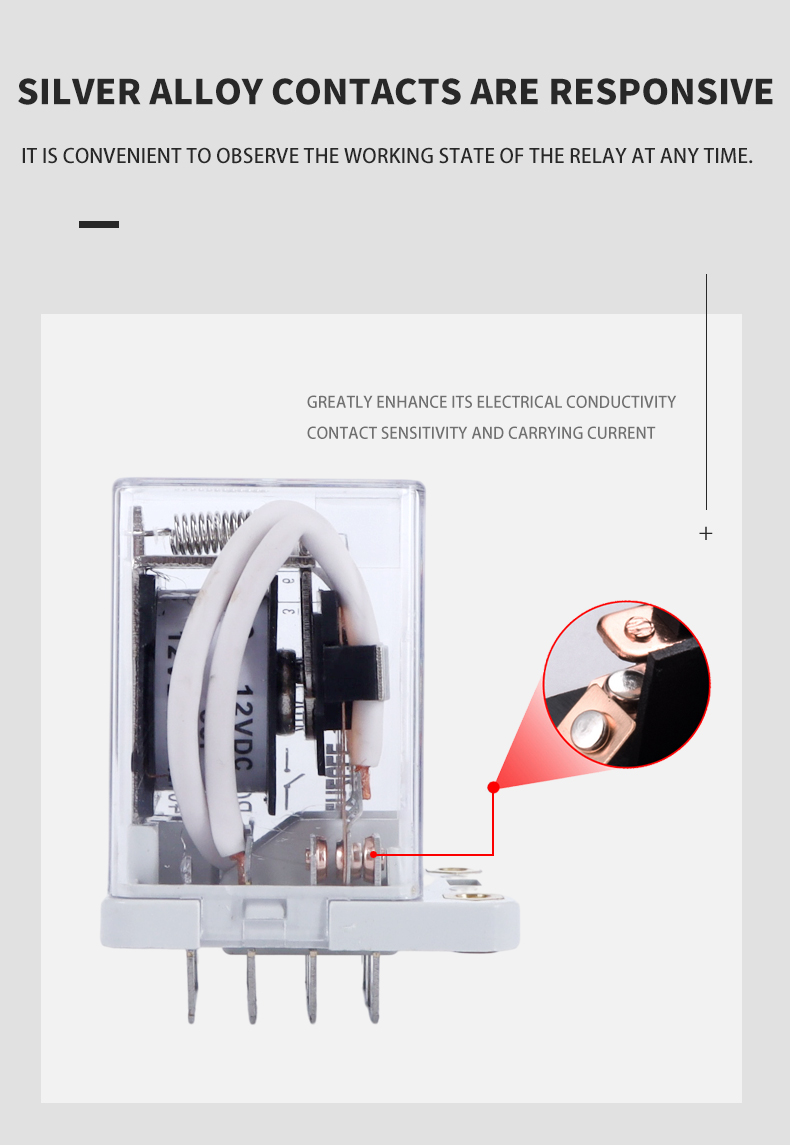

Silver Alloy
|
Resistance Performance Of Contactor Capacity
|
30A/40A/28VDC, 30A/40A/250VAC
|
Coil Power at 23°C
|
DC(W)
|
<1.5W
|
AC(VA)
|
<2.5VA
|
Coil Voltage
|
DC(V)
|
6~220V
|
AC(V)
|
6~380V
|
Pick-up Voltage at 23°C
|
DC≤75% AC≤80%
|
Drop-out Voltage at 23°C
|
DC≥10% AC≥30%
|
Max Voltage at 23°C
|
110%
|
Contact Resistance(at 6VDC 1A)
|
≤100mΩ
|
Dielectric Strength
|
Between Open Contacts
|
≥1200VAC 50Hz/1min Leakage Current 1mA
|
Contacts Pieces
|
≥1500VAC 50Hz/1min Leakage Current 1mA
|
Between Coil & Contacts
|
≥1500VAC 50Hz/1min Leakage Current 1mA
|
Insulation Resistance(MΩ) at 500VDC
|
≥1000MΩ
|
Service Life
|
Electrical
|
10^5 Times(Frequency:On 1 Time/1S,Off 1 Time/1S)
|
Mechanical
|
10^6 Times(Frequency:300 Times/1min)
|
Ambient Temperature
|
-25°C ~ +55°C
|
Teminal Type
|
Insert Type
|
Welding Type
|
Suitable Socket
|
38F11A
|
Product Weight
|
130g
|
