 JQX-62F-1Z High power relay

JQX-62F-1Z High power relay

JQX-62F-1Z High power relay

JQX-62F-1Z High power relay

JQX-62F-1Z High power relay

JQX-62F-1Z High power relay

JQX-62F-1Z High power relay

JQX-62F-1Z High power relay

JQX-62F-1Z High power relay

JQX-62F-1Z High power relay

Features:

80A Contact Change-over Capacity

With Operating and Dust-proof Type

Contact Ratings

Contact Ratings

1Z,1H,1D   2Z,2H,2D

Contact Resistance

30MΩ(1A 6VDC)

Contact Capacity

80A 120A 250VAC  2HP 250VAC

Specification

Insulation Resistance

1000MΩ,500VDC

Dielectric Strength

BCC 2500VAC 1 minute

BOC 1200VAC 1 minute

Operate Time

25ms/25ms

Terminal Type

Fast-connected terminals

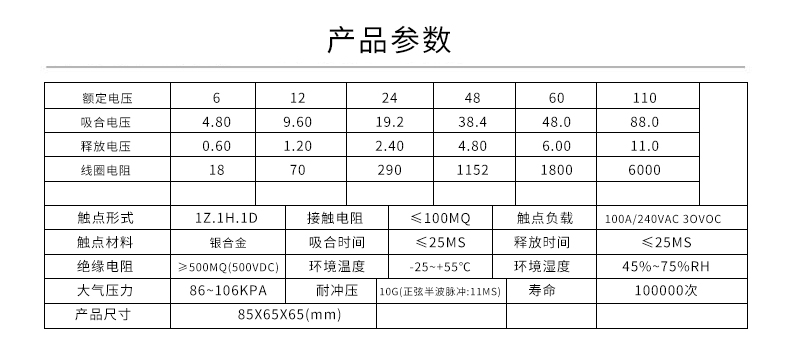

Coil Ratings

NormalCoil Power

DC

Coil Versions

Nominal Voltage VDC

Pull-in Voltage VDC

Release Voltage VDC

Coil Resistance Ω: ±
10%

Nominal Voltage VAC

Pull-in Voltage VAC

Release Voltage VAC

Coil Resistance Ω: ±
10%

6

4.20

0.60

18

6

4.80

1.80

9

12

8.40

1.20

70

12

9.60

3.60

36

24

16.8

2.40

290

24

19.20

7.20

144

48

33.6

4.80

1152

48

38.40

14.40

576

60

42.0

6.00

2800

110

88.00

36.00

3500

110

88.0

11.0

9650

220/240

176.00

72.00

12000/14400
