 JOX-58F High power relay

JOX-58F High power relay

JOX-58F High power relay

JOX-58F High power relay

JOX-58F High power relay

JOX-58F High power relay

JOX-58F High power relay

JOX-58F High power relay

JOX-58F High power relay

JOX-58F High power relay

Contact Ratings

Contact Ratings

1Z,1H,1D

Contact Resistance

100MΩ(1A 6VDC)

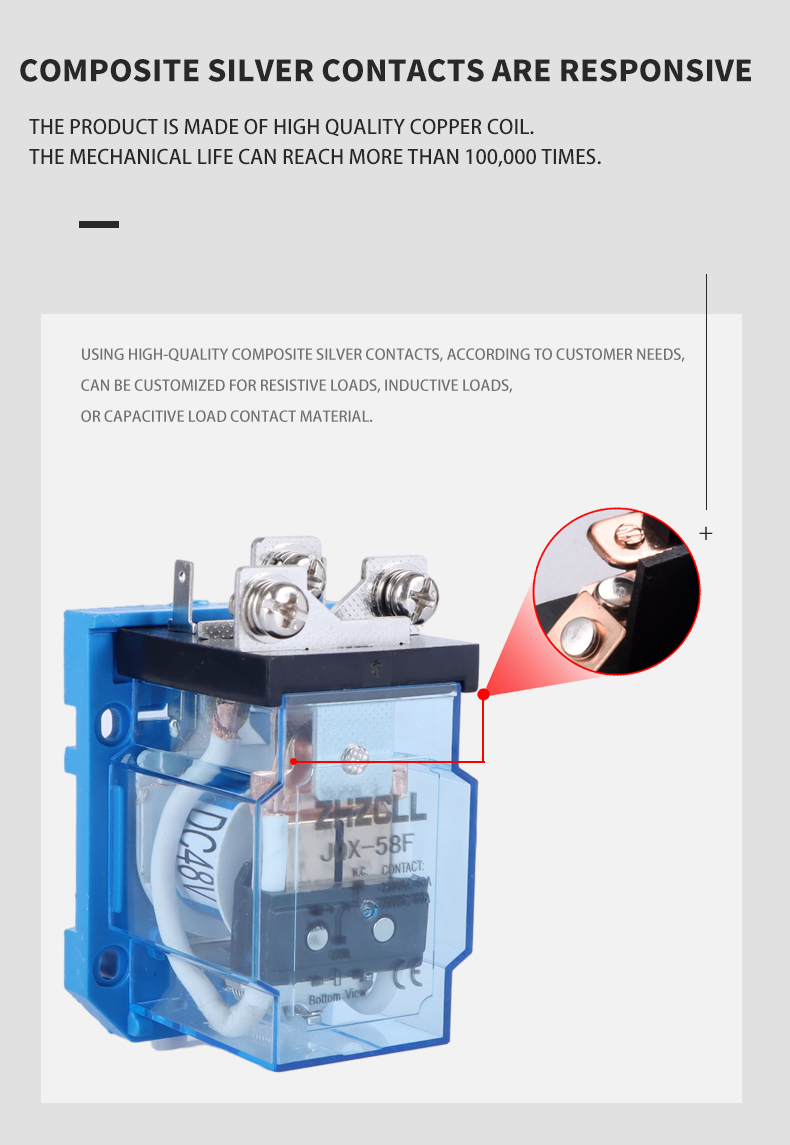

Contact Material

AgSnO

Contact Capacity

60A 250VAC/28VDC

Specification

Insulation Resistance

1000MΩ,500VDC

Dielectric Strength

BCC 2500V 1 min

BOC 1200V 1 min

Operate Time

25ms/25ms

Terminal Type

Screw

Coil Ratings

Nominal Coil Power

DC:2.0W AC:2.5VA

Coil Versions

Nominal

Voltage

VDC

Pull-in

Voltage

VDC

Release

Voltage

VDC

Coil

Resistance

Ω:±10%

Nominal

Voltage

VAC

Pull-in

Voltage

VAC

Release

Voltage

VAC

Coil

Resistance

Ω:±10%

6

4.80

0.60

20

6

4.80

1.80

14.4

12

9.60

1.20

65

12

9.60

3.60

57

24

19.2

2.40

320

24

19.20

7.20

250

48

38.4

4.80

1280

48

38.40

14.4

921

60

48.0

6.00

2800

110/220

88.00

36.0

5000

110

88.0

11.0

9650

220/240

176.0

72.0

19600/25040

Dimension.Bottom View
